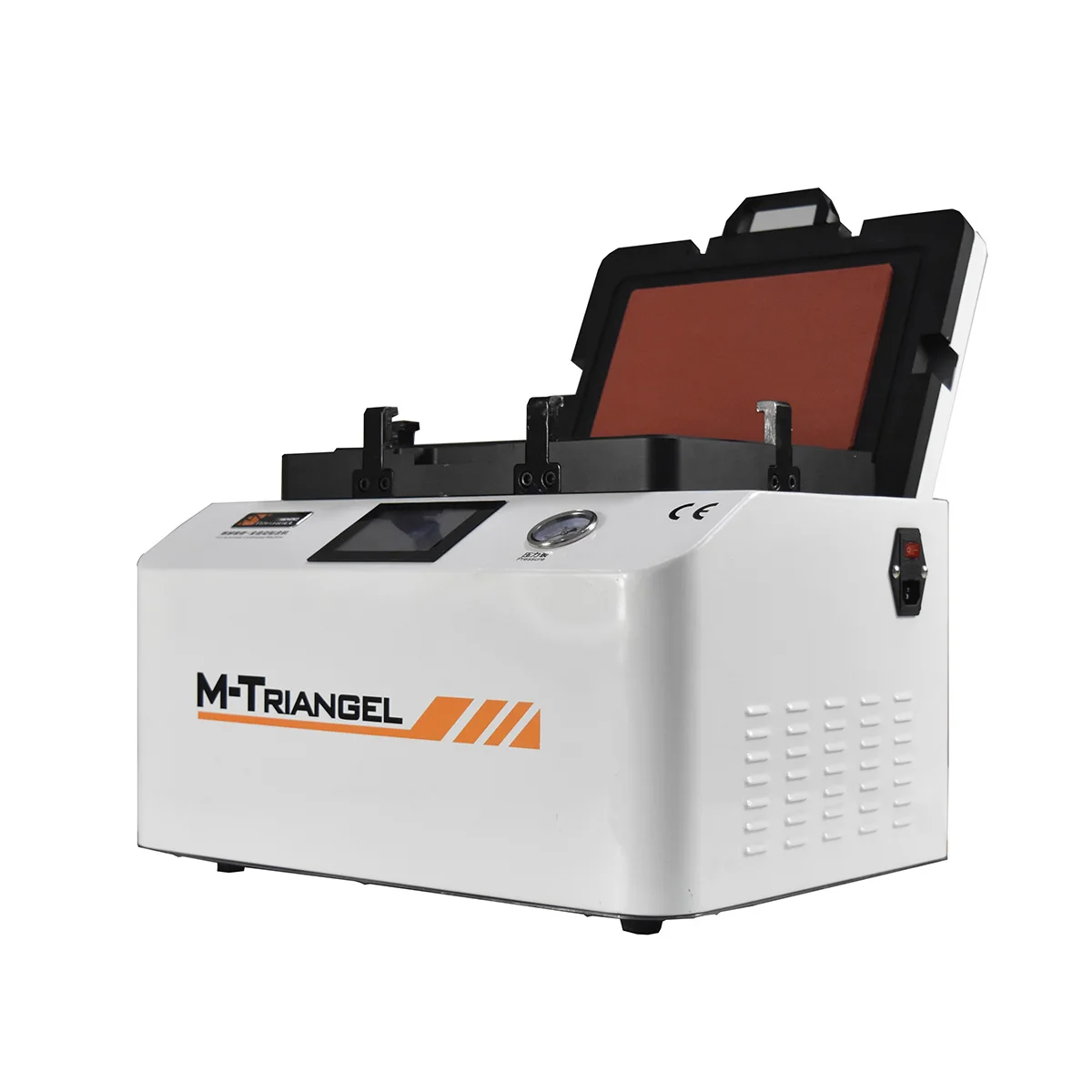

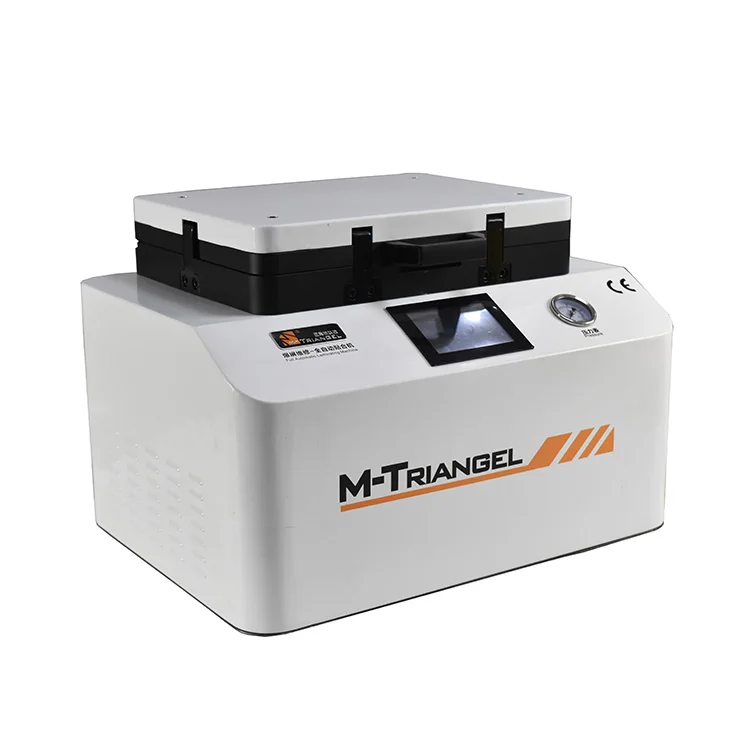

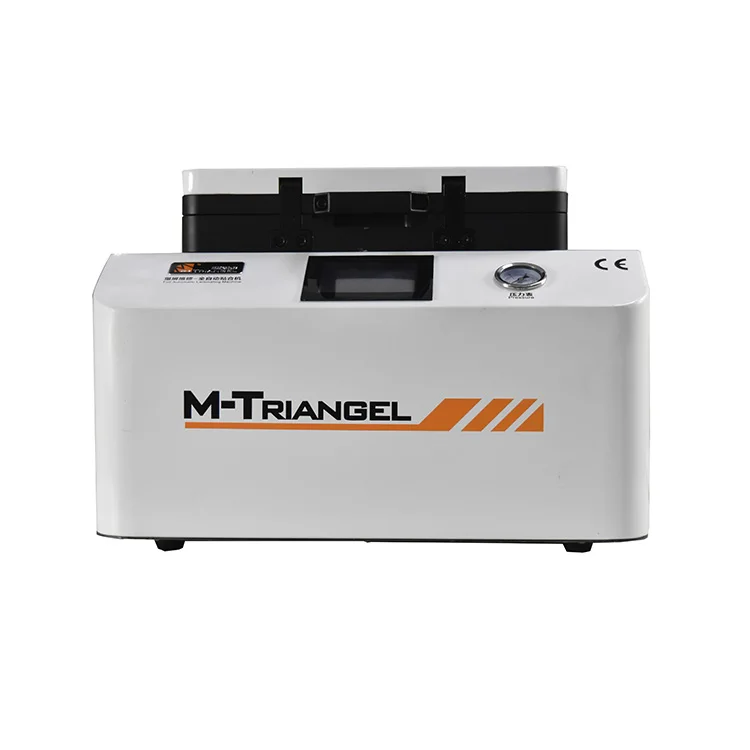

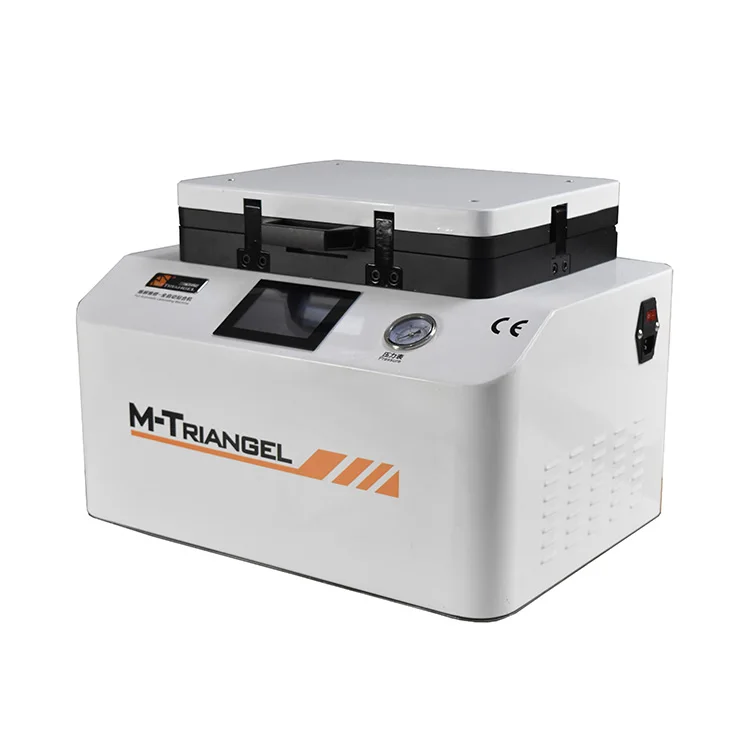

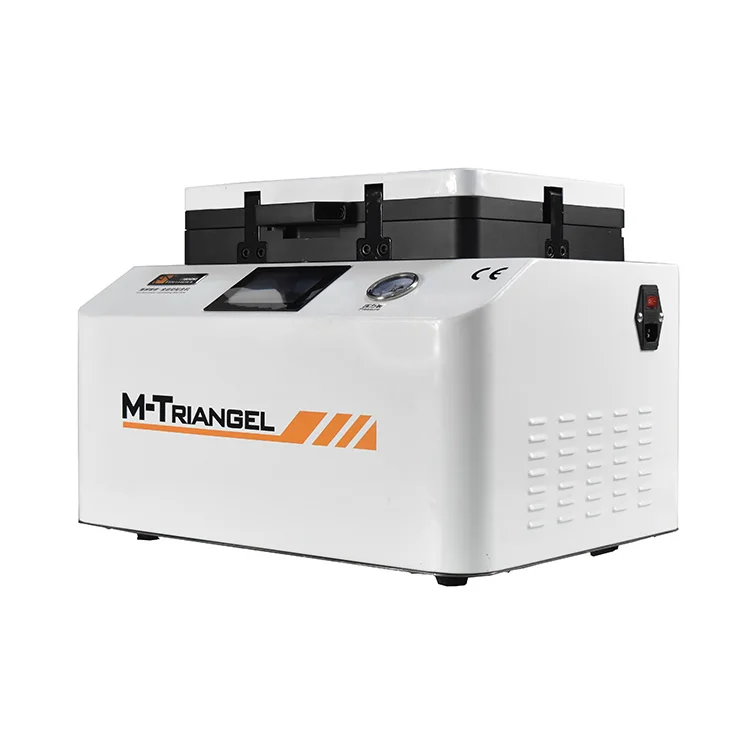

M-Triangel MT-12 OCA Vacuum Laminating Bubble Remover Machine

  • (0) Review

M-Triangel MT-12 OCA Vacuum Laminating Bubble Remover Machine Features: Vacuum Laminating machine and bubble remover in one for iPhone / Samsung / Huawei / Xiaomi / HTC / Motorola / Oppo/ LG / SONY and Other Mobile Phone Pads. Built-in Pump


Voltage:

  • $821.99
  • Quantity Price
    11- 8 $766.26
    6-10 $801.09
    1-5 $821.99

Stock in hand: 1000


Product is In Stock

Quantity

  • Add to Wishlist

Categories: Repair Tools/ M-TRIANGEL/ OCA Laminating All in one

M-Triangel MT-12 OCA Vacuum Laminating Bubble Remover Machine

Product Description
Features:
  • Vacuum Laminating machine and bubble remover in one for iPhone / Samsung / Huawei / Xiaomi / HTC / Motorola / Oppo/ LG / SONY and Other Mobile Phone Pads.
  • Built-in Pump
  • Suitable 12'' inches Flat and Curved Screen
  • Voltage/Watt :220v,110v  800W
  • Equipment size:430*310*310mm

1. Safety Code
For your personal safety, read this manual carefully. Familiarize yourself with the machine's application and limitations, as well as potential hazards associated with the machine.
A. Please read the manual carefully before using the equipment.
B. The machine uses a third grounding method of grounding and must maintain a good grounding, poor grounding may cause damage to equipment or endanger personal safety.
C. Non-professionals are prohibited to open the electrical box.



2. Parameter Specification
  • Equipment power supply: AC220V 5
  • (Optional AC110V, AC220V)
  • Working environment: 20-30°C, clean
  • Fitting way: flat fit
  • Heating method: constant temperature heating
  • Adapt to the size: 12 inches below all types
  • Equipment size:about 430 * 310 * 300mm
  • Equipment Weight: about 37KG 7
  • Equipment power: 500W

3. Use The Procedure
A. Parameter setting
  • After the boot, in English settings, press the CN / EN to switch.
  • Press TEST twice to set the device parameters.
  • The factory default parameters for the bonding temperature: 40°C
  • Vacuum Time: 20 seconds,
  • Bonding Time: 30 seconds, in addition to the bubble temperature of 40°C.
B. Pressure screen and precautions
  • use of the screen positioning mold, the LCD and the cover plate for initial positioning bonding.
  • Note that the lid and the LCD closed, do not squeeze the middle of the bottom of the mold will usually have hollow, just hold down the middle finger hold down the lid, and then in the middle of the bottom of the mold tap the LCD, so that the middle sticky Yes, this is extremely important!
  • the positioning of a good screen into the screen dedicated silicone pad on the glass panel facing down, and then into the machine fit the cabin, close the fitting door.
  • Screen discharge method is very important, which directly affect the final yield, the screen edge of the display window to align the sponge pad edge, so as to completely avoid the cable, any type of screen behind the cable, should be opened to avoid compression Resulting in the waste screen.
  • press the start button, open the automatic screen.
  • after the start, pay attention to the top right of the display vacuum negative pressure on behalf of the continued rise in normal, in case of pressure does not rise after the start of the situation, please contact the technical staff for you to solve.
  • Different regions of different elevations, will affect the effect of vacuum, the higher the altitude, negative pressure peak has decreased, negative pressure above -88 effect is the best.
  • Usually, 30 seconds vacuum time can be taken out of the cabin air, and then slowly rise to the aluminum plate, the cylinder pressure of 2-2.5 kg, paste the time for 30 seconds after the aluminum plate fell, the vacuum gauge to zero You can open the door to remove the product
  • need to screen a paste test screen



4. Working mode
  • Lamination mode
Press the start button, the device can start working, the machine began to vacuum, run to set the bonding time, the pressure gauge to rise, this time the equipment began to fit to reach the set bonding time, the equipment began to deflate, Fit to complete.
  • Defoaming mode
Press the start button, the device can start working, run to set the defoaming time, then start the device in addition to bubble, to reach the set defoaming time, the device began to deflate, zero pressure value, in addition to bubble complete.
In addition to the process of observation of the pressure gauge bubble, you can not leak
  • Bonding Deaeration Mode
Press the start button, the device starts to work, observe the pressure gauge, temperature control table, pressure gauge zero, the bonding is complete, the device automatically jump to defoaming mode, reach the set time equipment deflation, run time zero, In addition, to complete the bubble.
After the start of the air pump to the cylinder inflated to 6 kg pressure value of pressure for ten minutes, according to the size of the bubble on the screen to adjust the bubble in addition to the time, at least 5 to 10 minutes.
  • Remove The Final Product And Check That The Display And Touch Are OK.
Every Time You Open The Door, To Check Whether There Is Gas Cylinder, Inspection Method Is To Observe The Pressure Gauge Pointer, Air Pressure To Zero To Open The Door.



Package includes:
1 x M-Triangel MT-12 Vacuum Laminating Remover Bubble Machine
